JT-5 Autogyro

Model

The JT-5 autogyro model was made on my Macintosh using formZ RenderZone software. The model file size is 6.4 Mb (500000 polygons). A 2400x1600 size rendering typically took about 30 minutes in my Mac clone PowerTowerPro with 250 Mhz Motorola 604e processor and less than 10 minutes in my new 24" iMac with 2 Ghz Intel dualcore processor.

Click the pictures to view the bigger size!


JT-5 B wireframe model with formZ user interface.


"Virtual JT-5B" and the real JT-5 in the same scene.


JT-5 B over Loppi.


JT-5 B over Helsinki suburbs.


JT-5B on Malmi Airport.

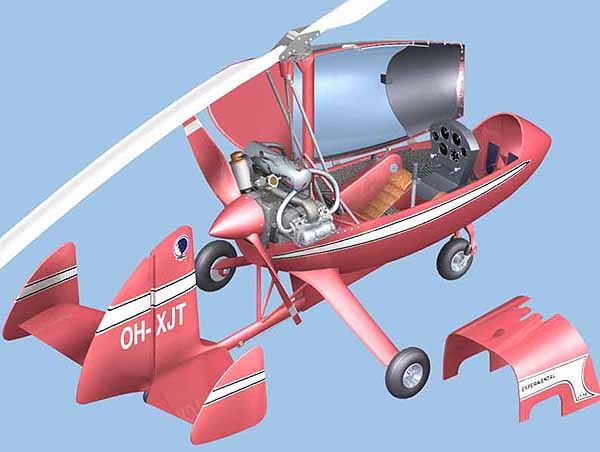

Cabin opened and Cowling
removed.


Close up view with the cabin opned.


Steel tube airframe and controls.



Power Plant, VW-1700

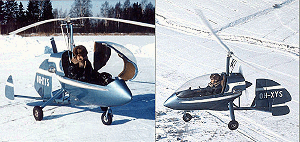

JT-5 Autogyro is a real aircraft. The model was
made only to illustrate some construction details
